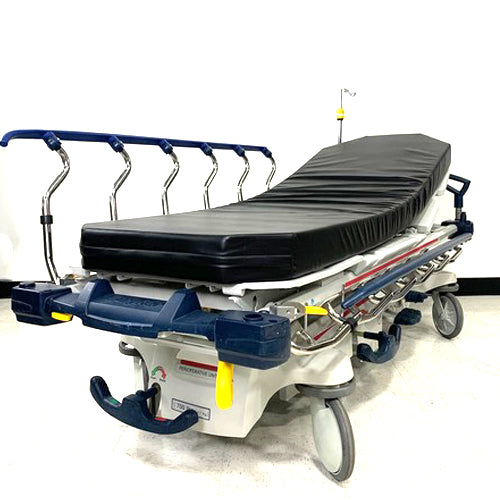

STRYKER 1007-Series STRETCHER

Stryker 1007 SM104 M-Series Stretcher Features

Stryker’s innovative design for the 1007 (SM-104) M-Series stretcher set a new standard for effective treatment and safe transport. Supremely mobile and user-friendly, the M-series stretchers are perfectly suited for fast-paced and rigorous environments such as the Emergency Department because they help greatly reduce the physical strain on clinicians without sacrificing patient care and comfort. This general-purpose stretcher also has a 700 lb. (317.5kg) weight capacity, an increase from the typical 500lb weight capacity, making it one of the first bariatric stretchers available on the market.

• Thermoformed ABS base with extra capacity storage tray
• Less than 21-inch low height
• Bariatric
• Integrated utility tray
• Litter-mounted oxygen bottle holder
• Integrated transfer board
• Central locking Four-wheel, steel-ring brake system with dual-end brake/steer controls
• Dual side-mounted hydraulic foot controls with unilower pedals
• Retractable Glideaway siderails
• Hands-free Trendelenburg and Reverse Trendelenburg
• Constant descent hydraulics
• Four integrated IV pole receptacles
• 8” Omni surface casters with wheel covers
• Dual pneumatic cylinder backrest
• Stationary foot-end litter
• Fifth-wheel steering mobility

Stryker 1007 SM104 M-Series Stretcher Specifications

General

• Maximum Weight Capacity: 700 lbs (317.5 kg)
• Overall Stretcher Length: 84” (± .5”) (213.3 cm)
• Overall Stretcher Width (siderails raised): 33.5” & 37” (± .5”) 85.1 cm & 93.9 cm
• Overall Stretcher width (siderails Lowered): 30.25” & 30.75” (± .5”) 76.8 cm & 78.1 cm
• Minimum/ Maximum Bed Height: 20.75”/34” (± .5”) 52.7 cm / 86.4 cm
• Fowler Angle: 0° to 90° (± 3°)
• Knee Gatch Angle: 0° to 40° (± 1°)
• Trendelenburg/Reverse Trendelenburg: +16°/-16° (± 1°)
• Minimum Under-Strecher Clearance: 6” nominal (15 cm)
• 1.75” under the hydraulic cyclinders and 5th wheel (4.5 cm)
• Optional Scale System Weight Operating range: 0 lbs. to maximum capacity of the stretcher
• Optional Scale System Accuracy: Between 10° Trend. & 10° Reverse Trend.*± 2 lbs. of weights below 100 lbs. ± 2% of weights above 100 lbs.
• Optional Scale System Environmental Requirements for Operation: 60° F - 80° F 0% - 90% Relative Humidity

Power

• internally Powered
• Ode of Operation: Continuous
• Electromagnetic Interface - product conforms to IEC 60601-1-2:1993 - Class B
• Voltage: 6.o VDC
